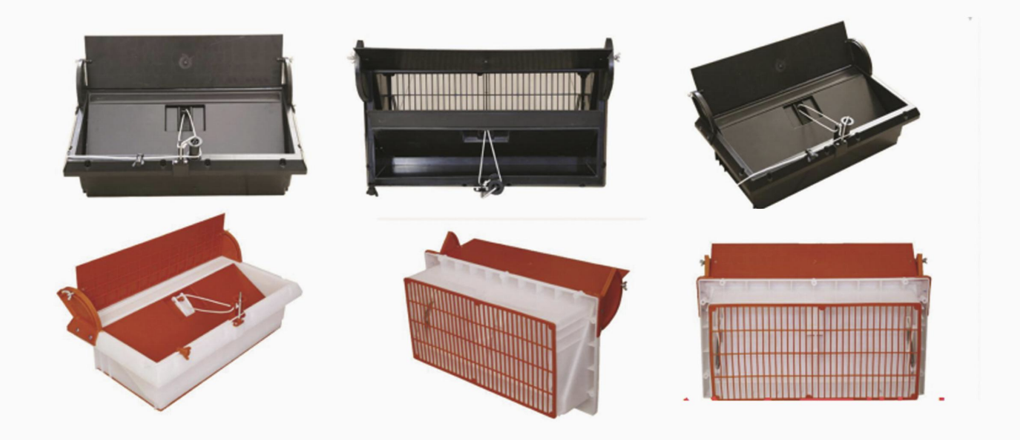

主要性能特点:

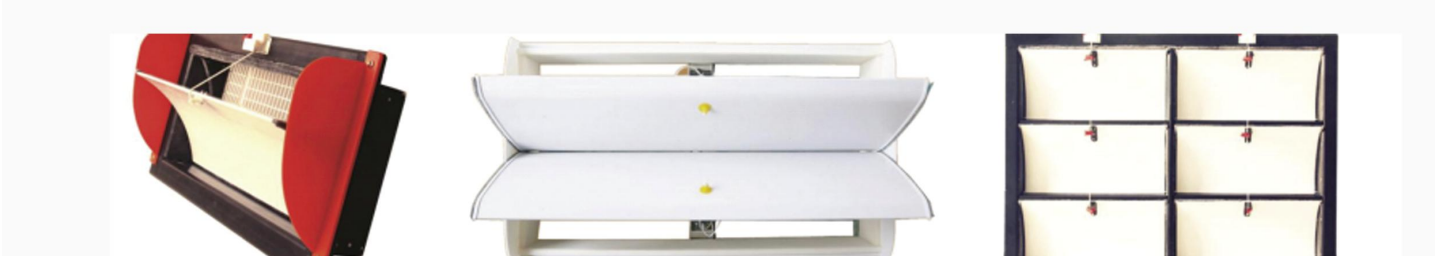

Seal tight, side open installation, length can be customized.

Adopt polyb, ABS, new material, three kinds of materials, can be made to order.

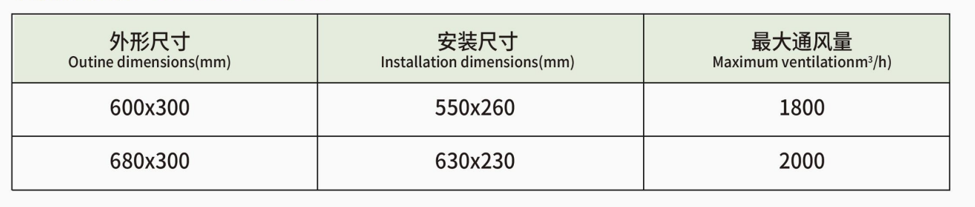

技术参数

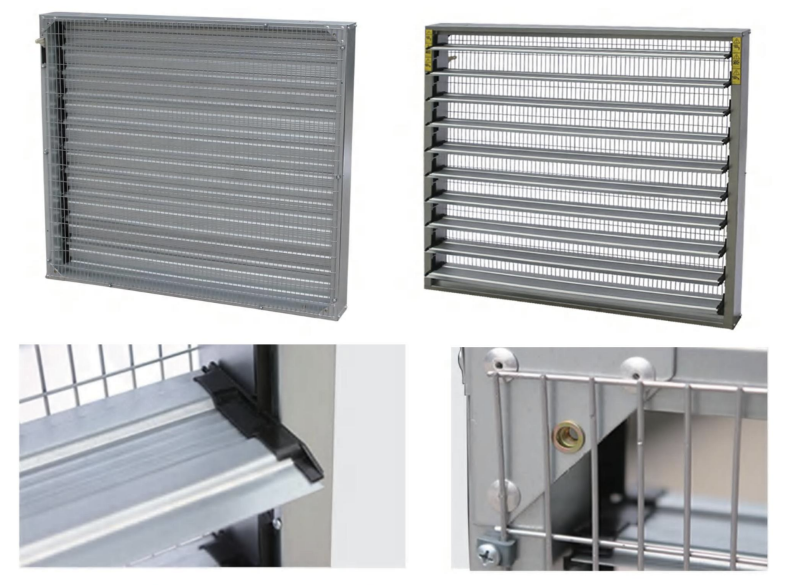

Frame and shutters are made of thickened hot-dip galvanized sheet with zinc coating 275g/m² anti-corrosion.

Ventilation shutters are designed with M8 threaded mounting holes for easy installation.

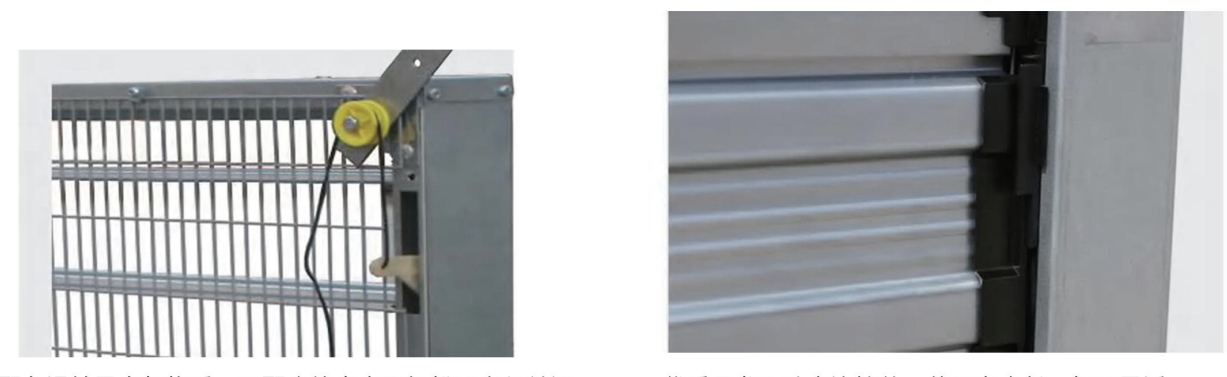

Equipped with a pulley guide device, it can be easily opened and closed with a winch.

High-quality nylon shutter link, long service life, and flexible operation.

产品特点：

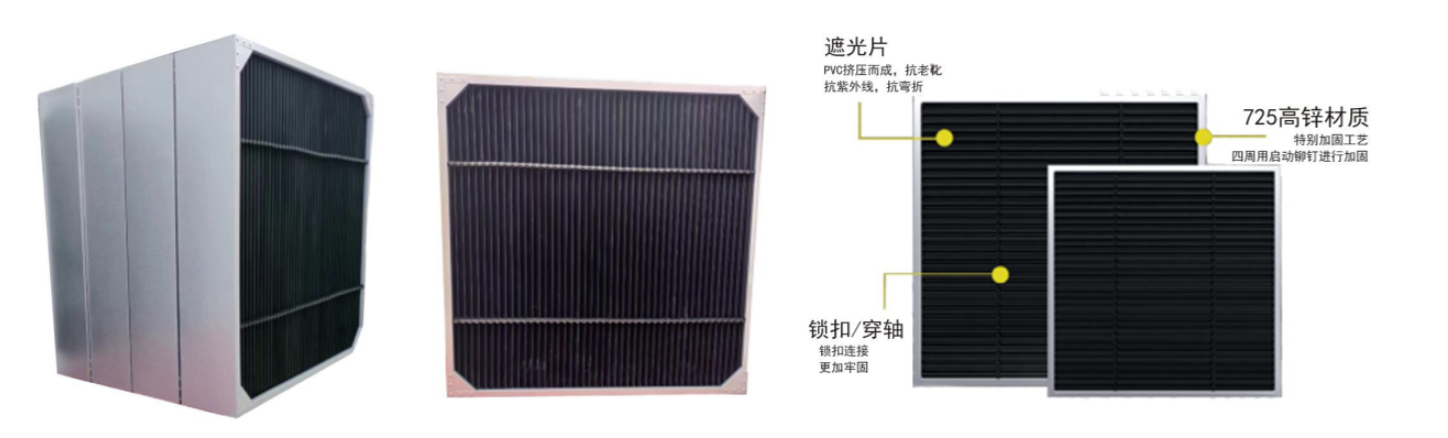

Injection molded from non-glare PVC material, durable, sun-resistant, chemical-resistant, and high-pressure cleaning resistant;

Reasonably designed, energy-efficient, easy to install, can be assembled into different sizes according to user requirements, tile layer height 30mm, greatly reduces and controls light exposure;

Frame materials include stainless steel frames and galvanized steel frames. Light intensity and daily light duration are precisely.

技术参数：

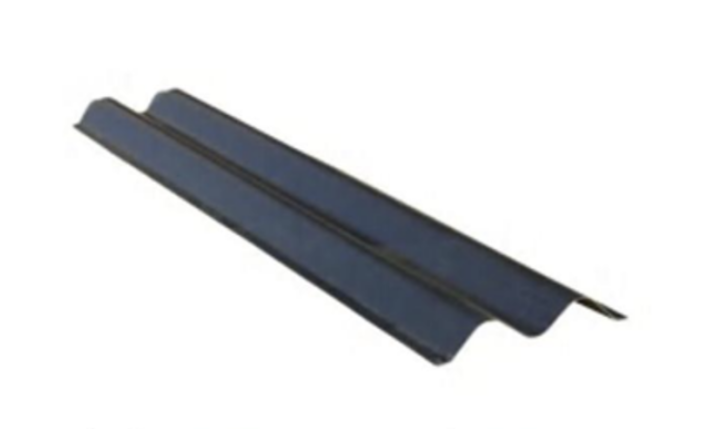

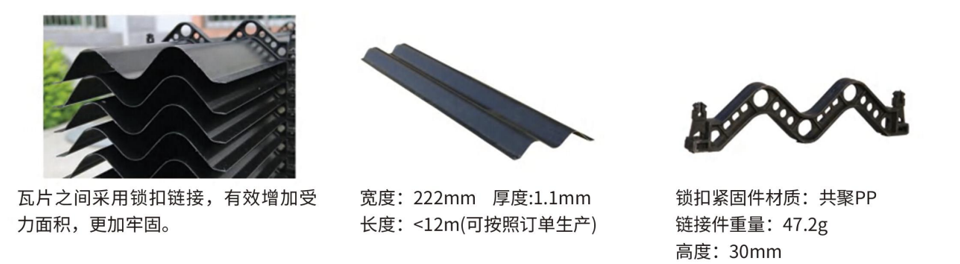

Vanes are connected by
fasteners, increasing the contact
area, more firmly.

Width: 222mm
Thickness: 1.1mm
Length: <12m (customize)

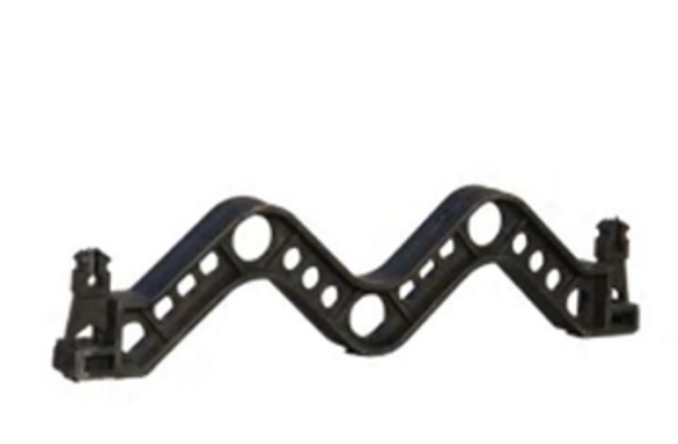

Fastener material: Copolymer PP

Weight: 47.2g Height: 30mm

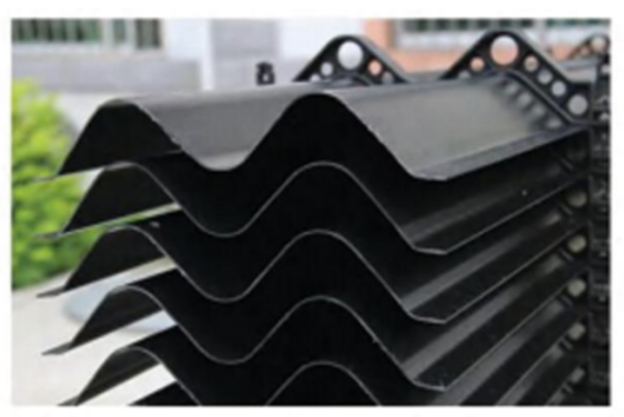

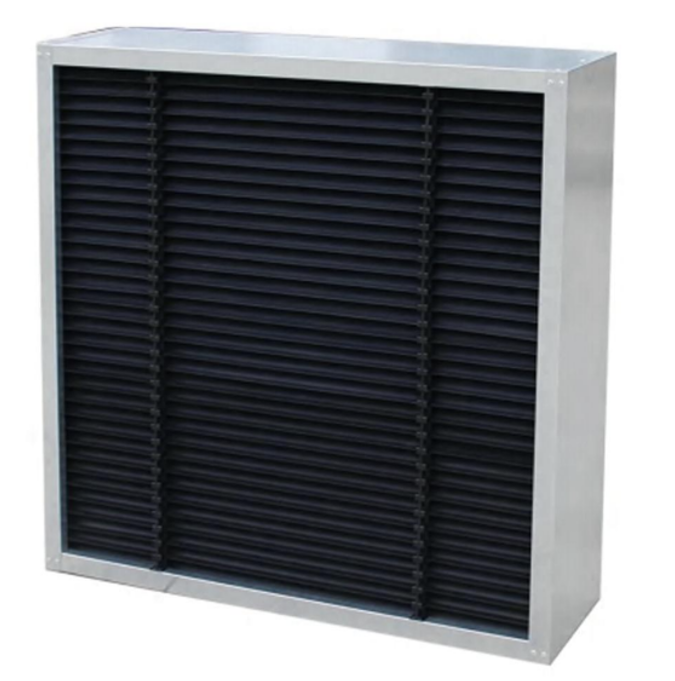

Made of non-glare PVC material by extrusion molding, anti-aging, chemical resistant, high pressure washable.

Reasonable design, Various assembling sizes, easy installation. Vanes clearance: 30mm.

Frame can be made of stainless steel and galvanized steel as per request.

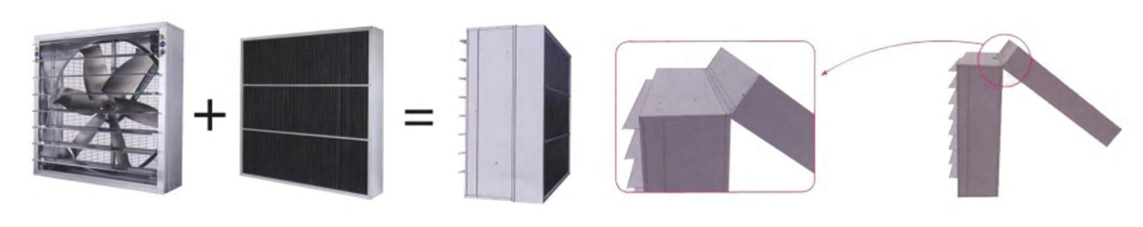

安装示意图
