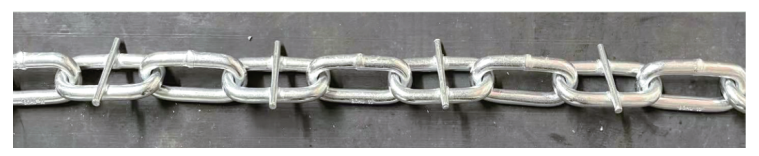

60 chain with stull

Material specifications:

Chain: 20Mn2

Inner length: 35mmInner

width: 9mmWire

diameter: 5mm

Deformation tension: 1.5 tons

Breaking force: 3 tons

Packaging: 50-100meters/bag

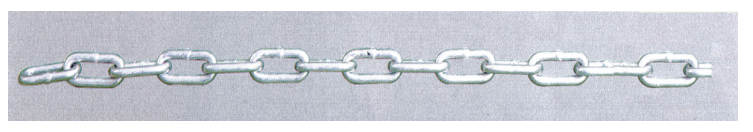

60 chain without stull

Material specifications:

Chain:20Mn2

Inner length: 35mmInner

width: 9mmWire

diameter: 5mm

Deformation tension: 1.5 tons

Breaking force:3 tons

Packaging: 50-100meters/bag

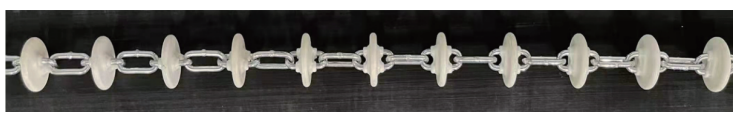

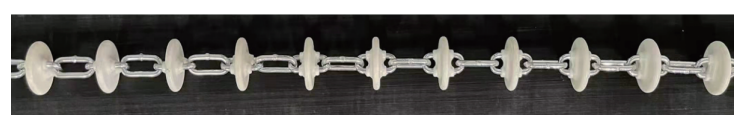

60 plug disc chain(without stull)

Material specifications:

High strength nylon 66(PA66) injection molding

Plug:diameter 45mm

Pitch:70mm

Plug disc thickness: edge 7mm

Edge fillet: R2

Chain injection molding area: 7.5mm

Deformation tension: 1.5 tons

Breaking force:3 tons

Displacement force: 300kg

Conveying distance: 400 meters

Packaging: 50-100 meters/bag

60 plug disc chain(with stull)

Materialspecifications:

High strength nylon 66(PA66) injectionmolding

Plug:diameter 45mm

Pitch:70mm

Plug disc thickness: edge 7mm

Edge fillet: R2

Chain injection molding area: 7.5mm

Deformation tension: 1.5 tons

Breaking force:3 tons

Displacement force: 600kg

Conveying distance: 400 meters

Packaging:50-100 meters/bag

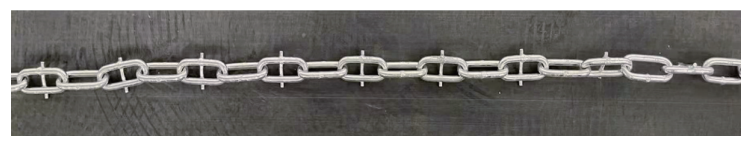

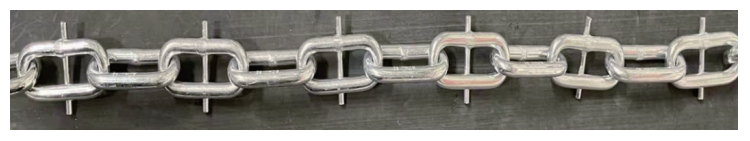

160 chain with stull

Material specifications:

Chain: 20Mn2

Inner length: 72mmInner

width: 19mmWire

diameter: 11mm

Deformation tension:7.5 tons

Breaking force: 7.5 tons

160 chain without stull(with stull)

Material specifications:

High strength nylon 66(PA66) injectionmolding

Plug:diameter 130mm

Pitch:144mm

Plug disc thickness:edge 10.9mm

Edge fillet: R2

Chain injection molding area: 30mm

Deformation tension: 7.5 tons

Breaking force:10 tons

Displacement force: 3 tons

Conveying distance: 400 meters

Packaging: 50 meters/bag

102 plug disc chain

Material specifications:

Chain: 20Mn2

Inner length: 46mmInner

width:26mmWire

diameter: 7mm

Deformation tension: 3 tons

Breaking force:5 tons

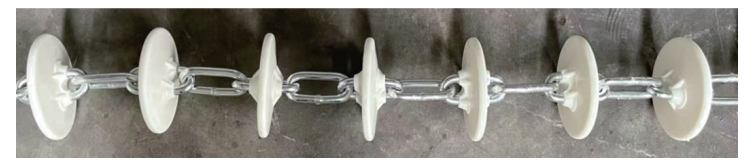

102 plug disc chain(with stull)

Materialspecifications:High strength nylon 66(PA66) injection molding

Plug:diameter 75mm

Pitch:92mm

Plug disc thickness: edge 9mm

Edge fillet: R2

Chain injection molding area: 11mm

Deformation tension: 3 tons

Breaking force:5 tons

Displacement force: 1.2 tons

Conveying distance:400 meters

Packaging: 50 meters/bag

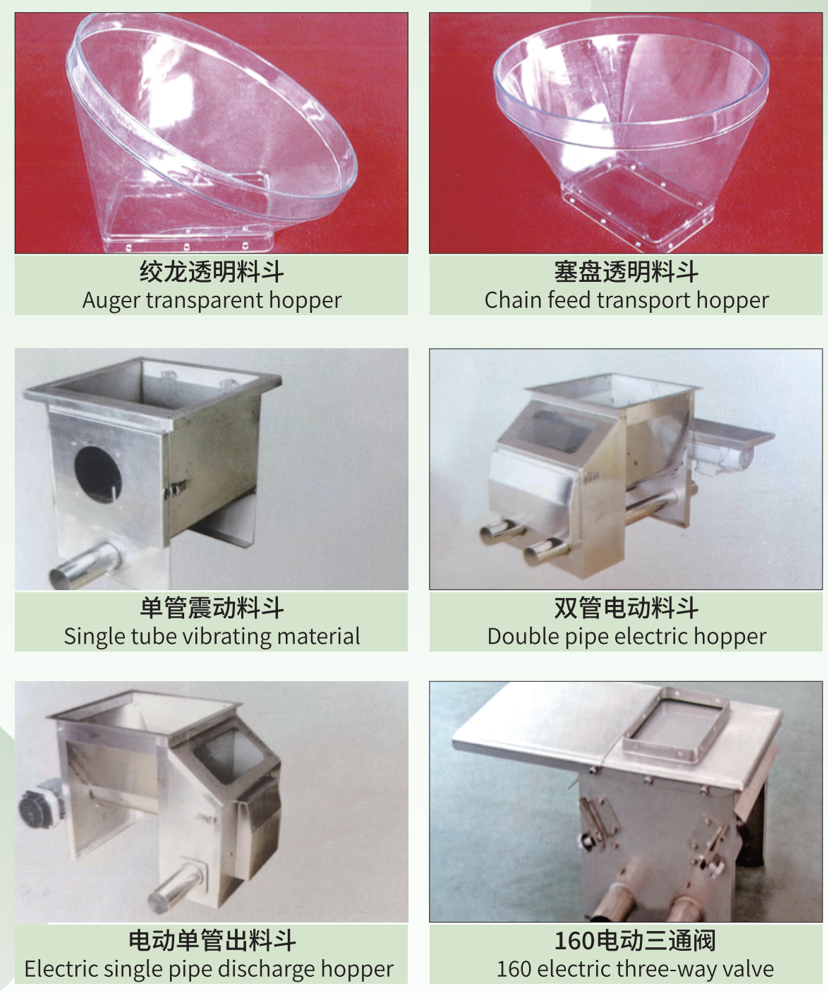

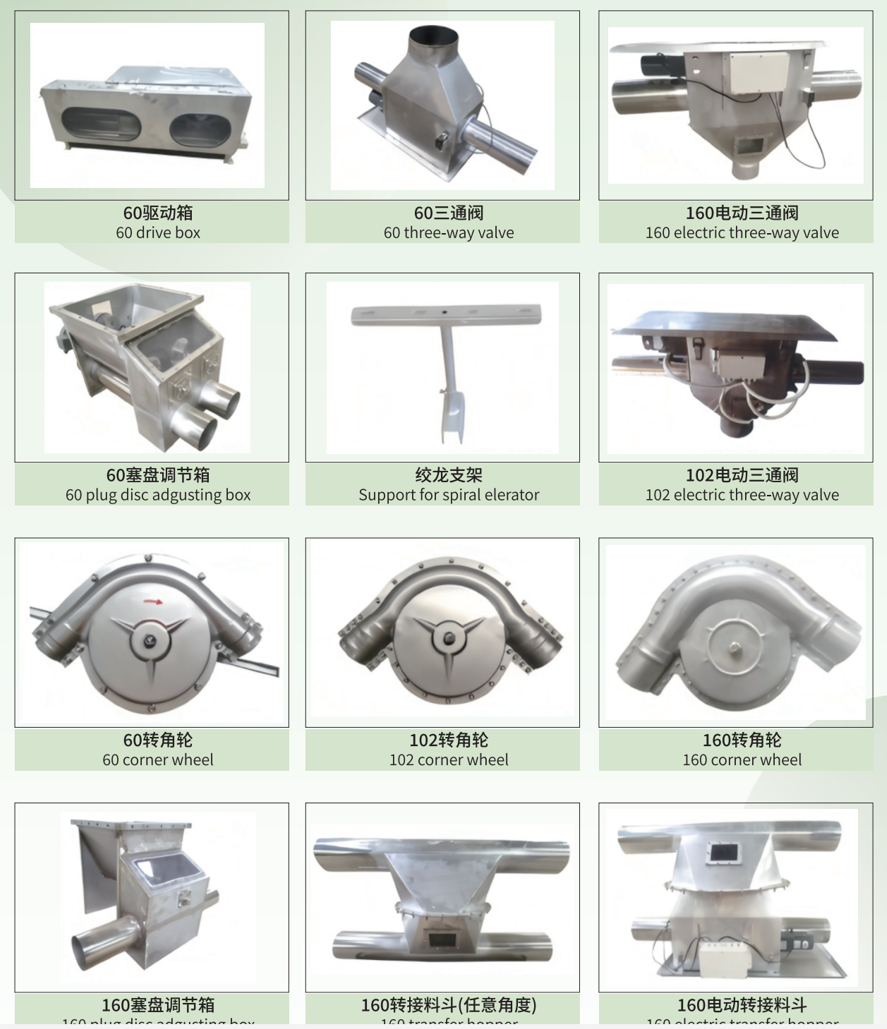

Material line equipment
